Streamlining Quality
In high-volume manufacturing, maintaining tight tolerances is critical to both product performance and brand reputation. Custom tolerance gauges were developed to verify the hole specifications in manufactured utility sinks, showers, and tubs. These tools provide an immediate, high-confidence "go/no-go" assessment, ensuring that every unit meets strict standards before it is approved for sales.
Brainstorming
DLP Printing
Mfg. Management
Engineering Drawing
Advanced Material Selection
To ensure reliability in demanding production environments, these gauges are engineered from impact-resistant materials capable of withstanding temperatures up to 180°C. Despite their rugged construction, the tools are optimized for a light carry, allowing for high-frequency use throughout a shift without operator fatigue. This combination of durability and portability ensures the inspection process remains efficient.
Functional Integration & Reliability

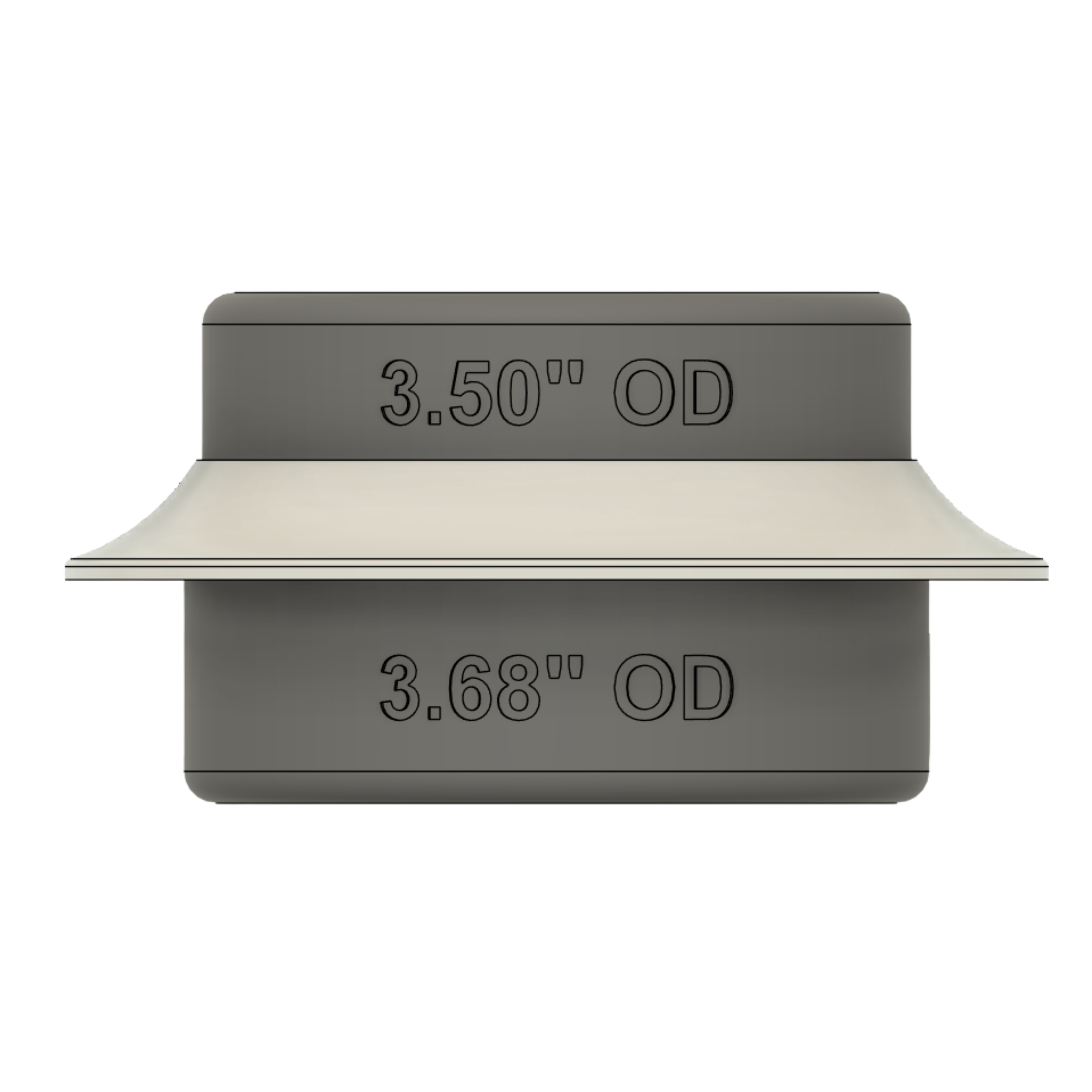

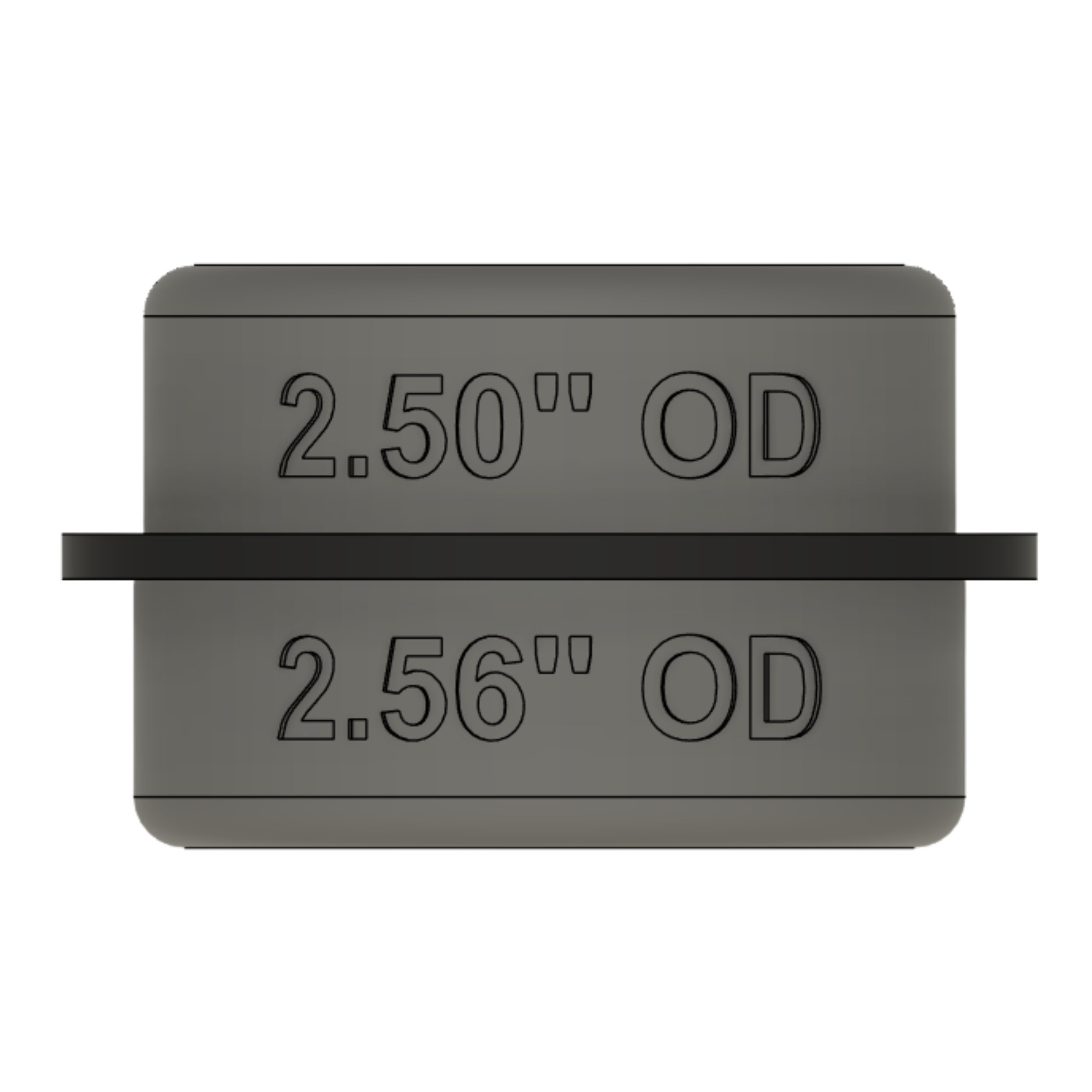

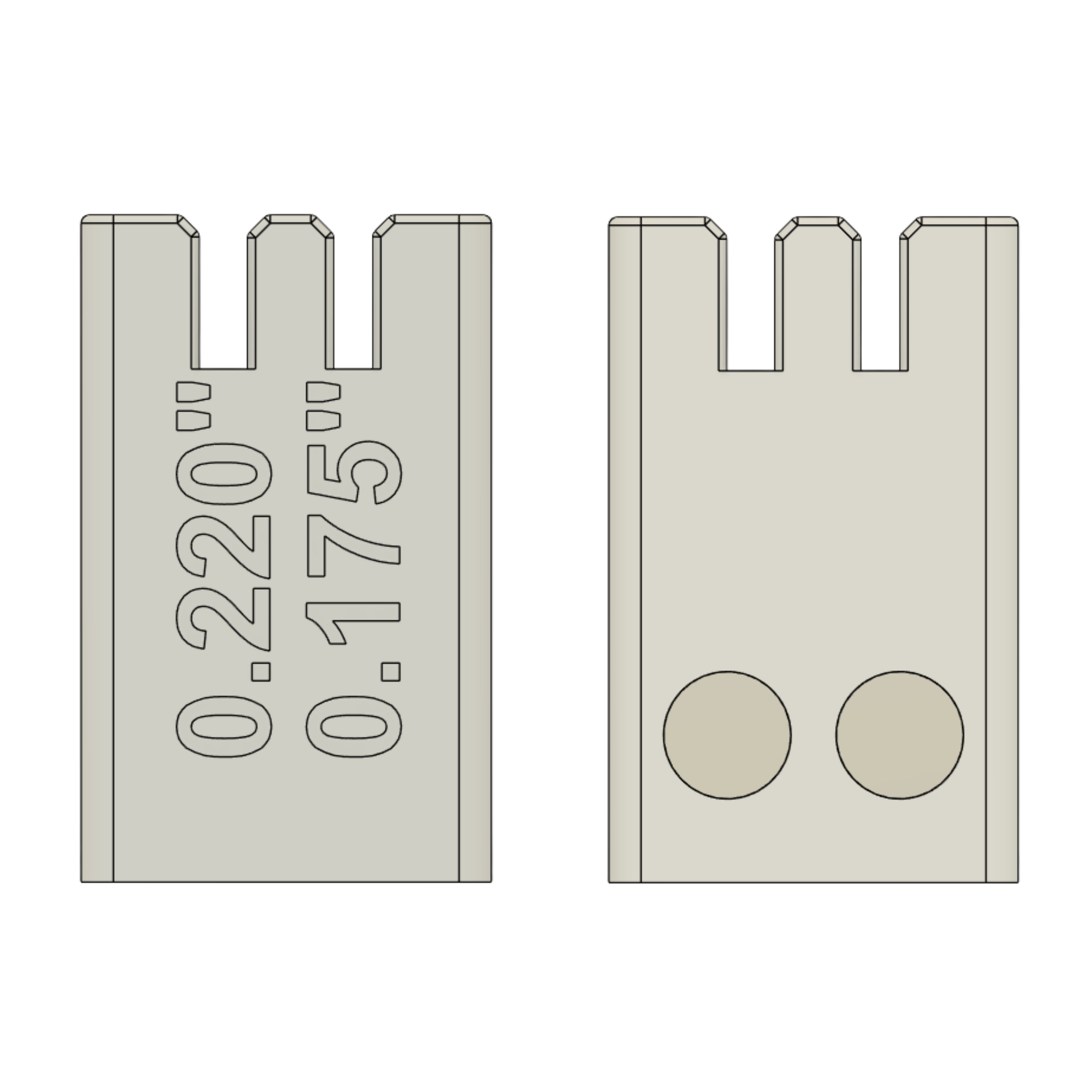

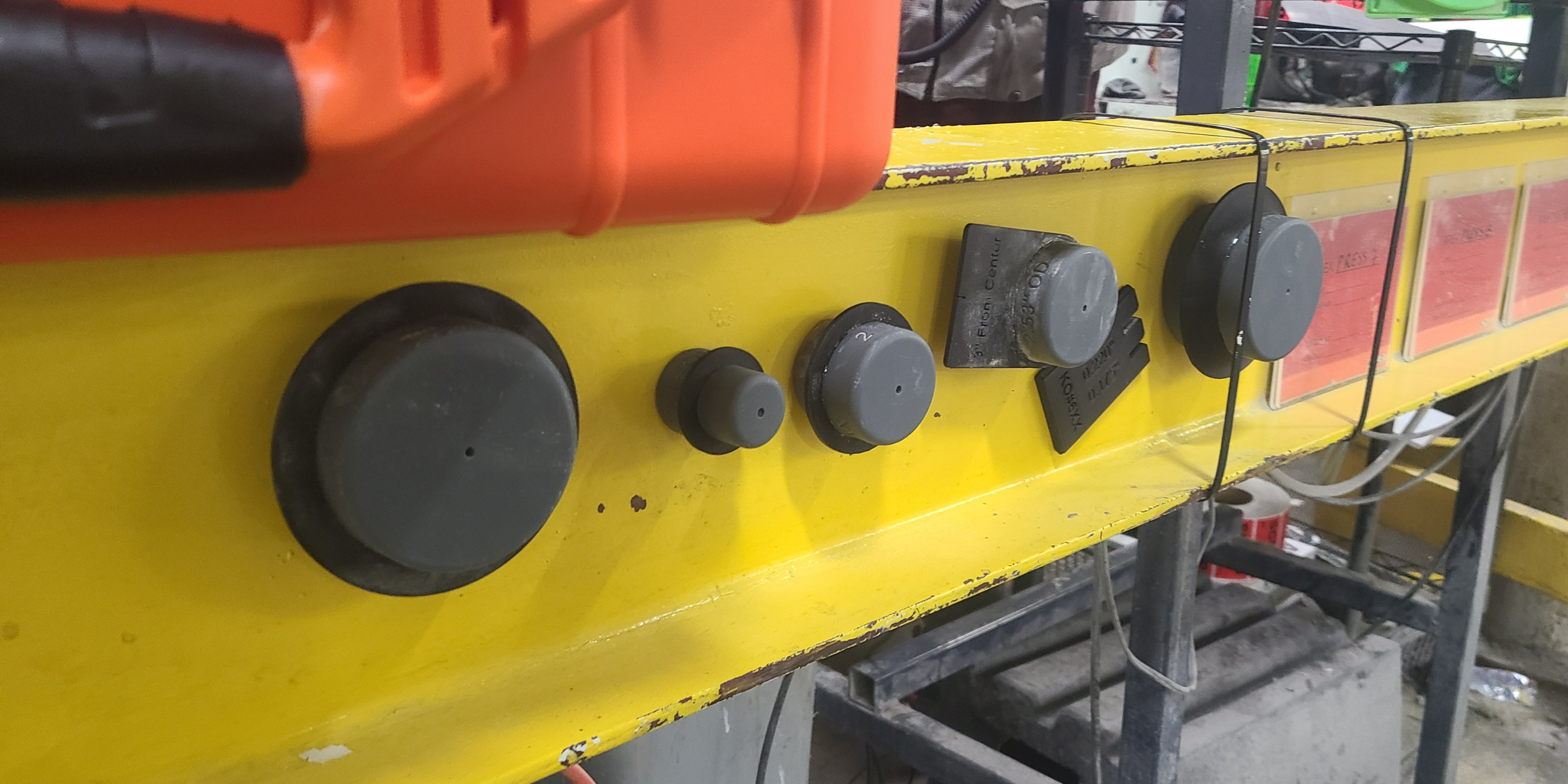

The design incorporates high-contrast, easy-to-read embedded labeling to facilitate rapid identification and reduce the chance of operator error. To further enhance shop-floor utility, integrated magnetic mounting allows the gauges to be securely stored on-site or attached to nearby equipment during the inspection process. By translating complex tolerancing requirements into these specialized, user-friendly tools, the path to final product approval is significantly streamlined.
The Final Product

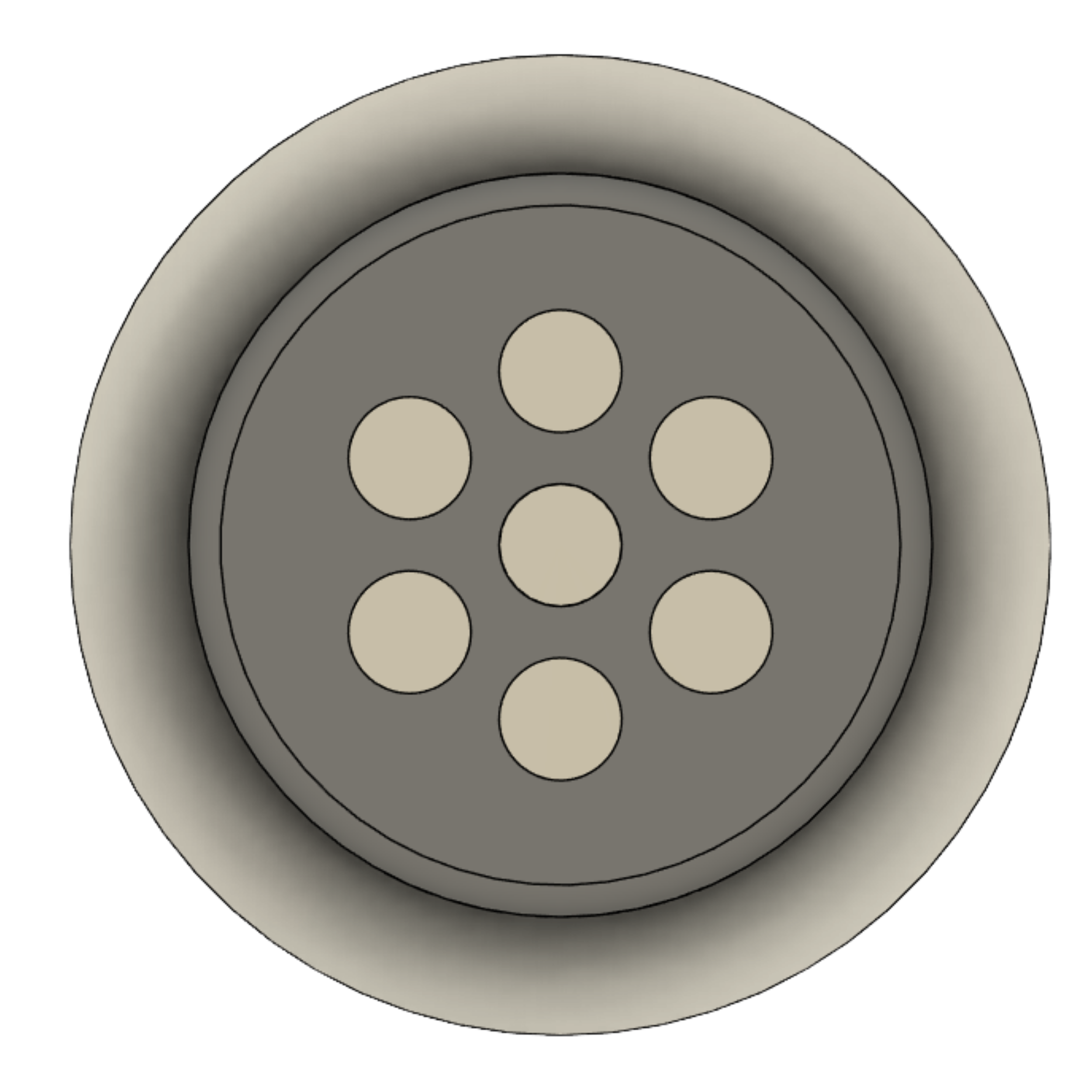

The final product is MSLA printed in 180°C resistant resin with carbon fiber reinforced nylon centering rings and equipped with neodymium magnets for easy mounting. All manufactured within a tested 99.9% accuracy rating.
